LN54U
LN54U
LN54U
LN54U
LN54U
LN54U

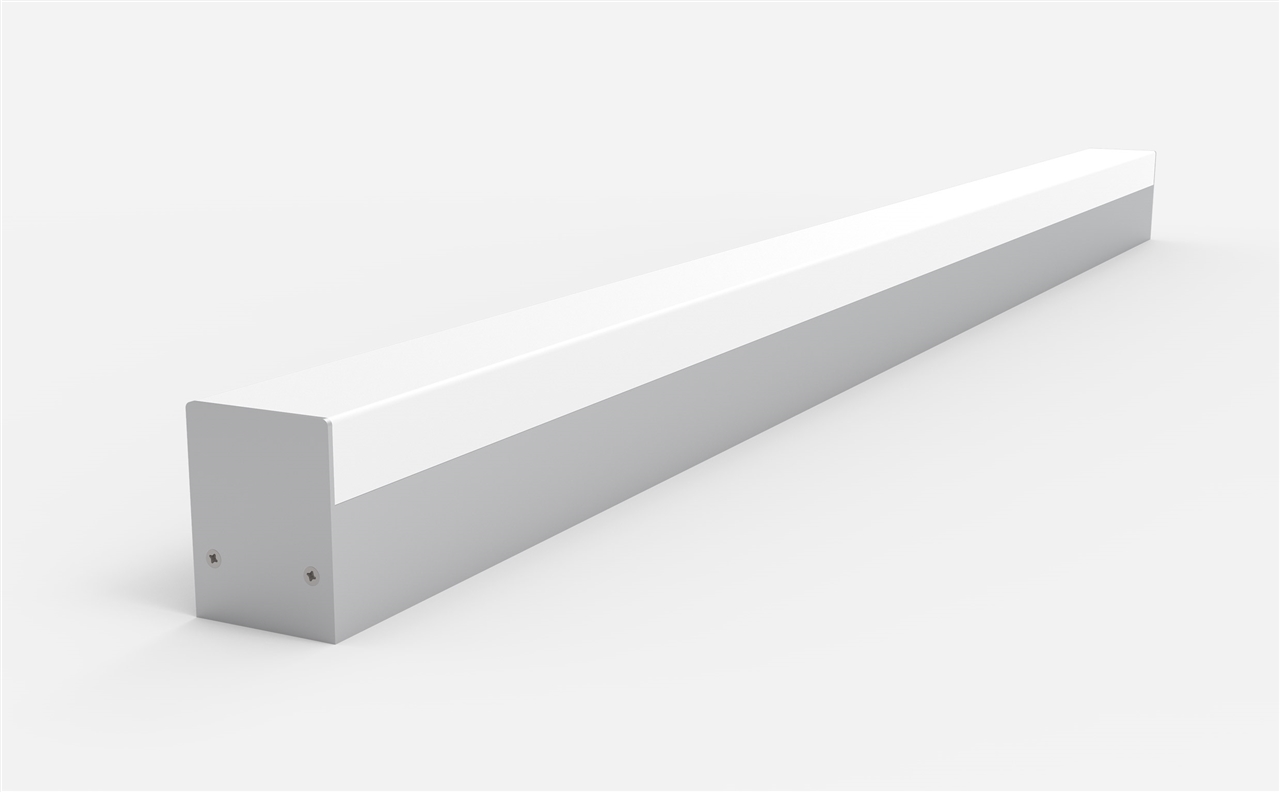

With its elegant design and wide light surface, LN54U creates an effective image in both indoor and outdoor applications. The diffuser cover is U-shaped. Light comes out from the side surfaces of the diffuser cover.

LED: High efficiency SMD LEDs CREE, OSRAM, SAMSUNG, NICHIA
BODY: Aluminum injection side cover. Steel screws transparent side covers
DIFFUSER: UV resistant, impact resistant PMMA diffuser
IP PROTECTION: Silicone cast by CNC machine. No thickness difference
and no tone differences.
PCB: Thickness 1.6mm, width 16mm 70u copper aluminum or FR4 PCB
COOLING CAPACITY: Maximum 40W/mt

Paylaş:
Product Code Operating Voltage (V) LED Quantity (Pcs/mt) Luminous Flux (lm/mt) Power (W/mt) Length (cm) Weight (kg/mt)
LN54USP70 24V DC 70 540 4.8* 100 0.81
LN54USP70 24V DC 70 864 7.2* 100 0.81
LN54USP70 24V DC 70 1200 10* 100 0.81
LN54USP70 24V DC 70 1728 14.4* 100 0.81
LN54USP70 24V DC 70 2400-4320 20-36* 100 0.81
LN54URGB60 24V DC 60 1 px/mt 4.5-14.4 100 0.81
LN54UDMX36MN 24V DC 36 6 px/mt 4.5-14.4 100 0.81
LN54UDMX36TNB 24V DC 72 6 px/mt 4.5-14.4 100 0.81
LN54UDMX36RGB 24V DC 36 6 px/mt 4.5-14.4 100 0.81
LN54UDMX36RGBW 24V DC 72 6 px/mt 4.5-14.4 100 0.81

LN54U DATA SHEET
